Single Row Ball and Roller Water Pump Bearings - WIR Series

INQUIRE

DETAIL

Product Description

FOS Water pump bearings basically consist of standard double row bearings, ball-ball type and ball-roller type. Water pump bearings do not have an inner ring but instead have raceways directly machined into the shaft. Therefore, there is additional space for rolling elements enabling higher specific load-carrying capability than conventional single bearings. Water pump bearings can support both large axial and radial loads. The high load carrying capacity and high rotation speed enable the large flow of the water pump.MBY Water pump bearings are well greased and sealed to ensure high dependability. And the ends of their shaft normally extend beyond the outer ring on both sides. The length and diameter of these extended sections can be matched to the specific application. They are predominantly used in automotive water pump.

FOS Water pump bearings a includes:
Single row ball and roller water pump bearing ( WR..series)
Double-row ball water pump bearing - WB1630
Double-row ball water pump bearing - WB1940
Double-row ball water pump bearing - WB1938
Double-row ball water pump bearing - WB1226
Double-row ball water pump bearing - WB1224
Double-row ball water pump bearings
Single-row ball and single roller water pump bearings

Note：Swipe left or right to view the complete table!

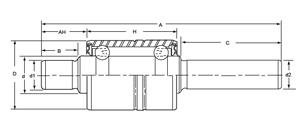

Bearings No.				Dimensions(mm)
FOS	NSK	FAG	MCQVAYNORRS	D	d	d1	d2	A	B	C	S1	S2
WIR1630076			PS697	30	15.918	15.918	12.037	76	32.69	27	0	30.3
WIR1630080	665341		PS533	30	15.918	15.918	15.918	80	15.75	37	15.75	37.29
WIR1630110	665332	WN2434	PS564	30	15.918	15.918	15.918	110.4	21.36	38.89	21.36	41
WIR1735101				35	16.9	12	15.918	101	25	39	33.8	23.5
WIR1938134				38.1	18.961	15.918	15.918	134.1	30.83	54	41.59	12.24
WIR1938135	665879	WKN2531-3	PS585	38.1	18.961	15.918	18.961	134.9	30.1	54	30.1	48.26
WIR1938149		WKN2588		38.1	18.961	15.918	18.961	149.4	35.69	54	54.23	0
WIR1938151	665764	WKN2592		38.1	18.961	15.918	18.961	150.5	35.05	54	58.29	0
WIR1938153	665807	WKN2604		38.1	18.961	15.918	18.961	153.4	45.75	54	50.29	0
WIR1938157	665746	WKN2616	PS421	38.1	18.961	15.918	18.961	156.6	39.62	54	59.82	39.62
WIR1938158	665812	WKN2622	PS575	38.1	18.961	15.918	15.918	158	46.74	54	52.83	14.78
WIR1938161	665796	WKN2634-1	PS451	38.1	18.961	15.918	15.918	161	46.74	54	55.83	33.15
WIR2548161			PS602	47.625	25.4	15.918	18.961	160.8	39.52	69.85	46.35	13.6


